Tumble Chiller

Manufacturer: DCN

Tumble Chiller

DCN tumble chillers rapidly chill bagged soups and sauces to below 4°C, extending refrigerated shelf life by up to 45 days; 300 to 1,000 litres.

Ask about this machine

Key features

  • Chilled water recovery system
  • Automatic back-flush system for the heat exchanger
  • "Super Dynamic" temperation loop
  • V-type twin-belt skeleton conveyor
  • Virtual chart recorder
  • All-stainless-steel design
  • Microprocessor control with easy-to-use HMI
  • Cleaning cycle

Technical data

Capacities
300, 500, 750 and 1,000 litres
Final product temperature
Below 4°C (40°F)
Cooling time – thin products
Approx. 45 minutes
Cooling time – thick products
Approx. 90 minutes
Shelf life extension
Up to 45 days refrigerated

Description

DCN tumble chillers deliver higher food quality, better texture and superior taste. Large batches of food are rapidly chilled in flexible plastic casings to below 4°C (40°F), extending refrigerated shelf life by up to 45 days.

How it works

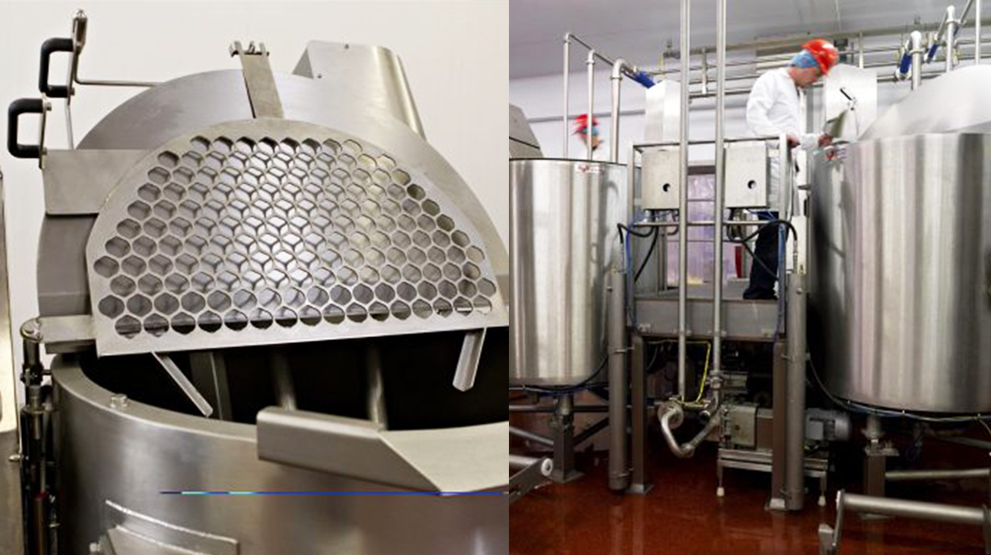

After cooking, the bagged product is immersed in chilled water while the drum rotates, tumbling the bags and massaging the product to cool it completely with minimal product damage. Approximate cooling times are 45 minutes for thin-viscosity products and 90 minutes for thick-viscosity products.

An easy-to-use HMI screen with temperature display reduces operator error, and cooling times and temperatures are fully logged by a virtual chart recorder for batch traceability. Recycling surge tanks save and reuse chilled water, conserving resources and reducing costs.

DCN tumble chillers are part of the DCN Cook-Chill System.

Ask about this machine

Send us your question or the details of your project. We usually reply within one working day.
