Manufacturer: DCN
Transfer & Mixing Vessels
DCN transfer vessels for vacuum or pressure transfer of hot and cold products, in static, storage, mixing and mobile versions up to 5,000 litres.
Key features
- Vacuum or pressure transfer of hot and cold products
- Static, storage, mixing and mobile versions
- Castors or fork truck channels for mobility
- Insulated or jacketed construction
- Agitated or non-agitated models
- Custom built to customer requirements
Technical data
- Mobile vessel size
- Up to 600 litres
- Maximum size
- Up to 5,000 litres (larger on request)
- Stainless steel
- 316 for contact parts, 304 for other parts
- Design code
- PD5500
- Working pressure
- 1 bar (or to suit customer requirements)
- Vacuum
- Tested to full vacuum
- Outlet valve
- Hygienic butterfly valve
- Access
- Hinged lid or manway
- Mobility
- 2 fixed + 2 swivel castors, or fork truck channels
Description

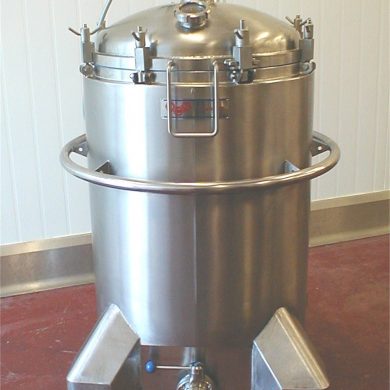

DCN transfer vessels are ideal for the vacuum or pressure transfer of hot and cold products. Mobile versions are available in a range of sizes up to 600 litres and can be fitted with two fixed and two swivel castors, so the tank can also serve as a mobile holding vessel.
Vessels are made from 304 or 316 grade stainless steel and can be custom built to customer requirements. Static, storage, mixing and mobile versions are available.
