Manufacturer: Eagle
Eagle Pack 550 PRO
X-ray inspection for ready meals and food in large bags, pouches, cartons, thermoformed trays and multipacks, with 549 mm detection coverage and speeds up to 90 m/min.
Key features
- For large bags, pouches, cartons, thermoformed trays and multipacks
- Works with foil and metallised film packaging
- Automatic rejection of physical contaminants
- Simultaneous fill level, mass, seal and component checks
- Multi-lane inspection for different products or rework
Technical data
- Detection coverage at belt
- 549 mm (21.6 in)
- Imaging speed
- up to 90 m/min (295 FPM)
- Packaging
- Plastic containers, cartons, pouches, bags, trays, tubes
Description

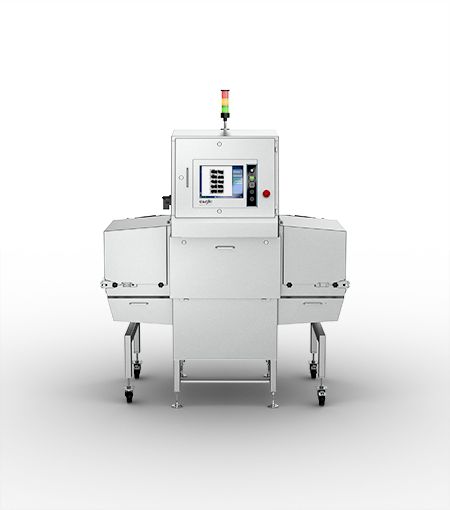

Eagle Pack 550 PRO
The Eagle Pack 550 PRO is designed for X-ray inspection of food products in large bags, pouches, cartons, thermoformed trays and multipack containers. It detects and automatically rejects physical contaminants:
- Glass shards (including glass in glass containers)
- Metal fragments (including metal in foil and metallised film packaging)
- Mineral stone
- Some plastic and rubber compounds
- Calcified bone
It works with foil and metallised film packaging and detects foreign bodies in:
- Plastic containers
- Cartons/boxes
- Pouches
- Bags/sacks
- Trays
- Tubes
The system offers 549 mm (21.6 in) of detection coverage at belt level and high-speed imaging at up to 90 m/min (295 FPM).
Product integrity checks
Multiple inspection modes run simultaneously to perform inline product integrity checks:
- Fill level inspection
- Mass measurement
- Seal inspection
- Component counts
Multi-lane inspection allows several lanes of the same or different products to be inspected, or one lane to be used for production and another for rework.

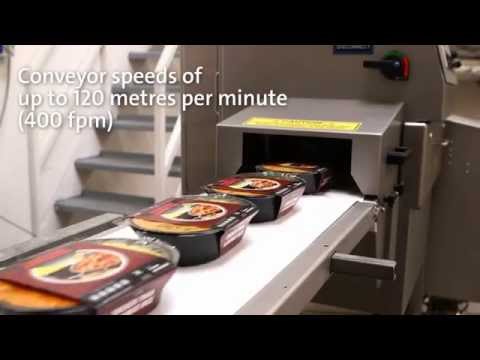

See it working
